AW71-1RD

PRODUCT NAME: TEMPEST 10

DESCRIPTION
Architectural, Coloured Reflector, Anti-glare, Deep Baffle, Adjustable, Recessed LED Downlight with Trim

MATERIAL
Pure Aluminium Mounting Ring, Die-cast Aluminium Housing, Anti-glare Optic Diffuser

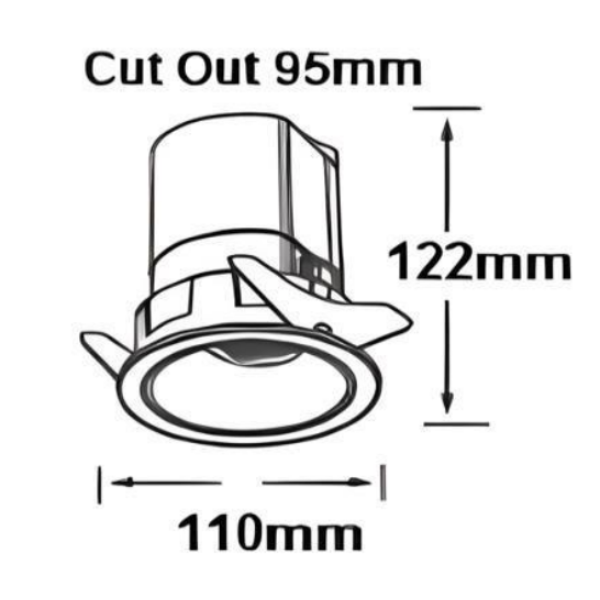

DIMENSIONS
Diameter: 110mm; Height: 122mm; Cut Out: 95mm



Download Data Sheet

Download IES File

SKU: AW71-1RD Category:

Additional information

Wattage

10W

Lumen output

1300 lms

Beam angle

15°, 24°, 38°, 60°

Temperature

2700K, 3000K, 3500K, 4000K

CRI

>90

Dimming

DD (DALI), ND (Non-Dim), PH (Phase)

Finish

Black, White

Reflector Option

Black, Gold, White, Silver

IP Rating

IP20

IC Rating

IC-4

IK Rating

IK05
