AW136IW

PRODUCT NAME: MIKO

DESCRIPTION
Linear Architectural, Custom Length, Wall Mounted LED Luminaire, Down Option, Up & Down Option, Integral Driver

MATERIAL
Aluminium Extrusion, Glare Protective Frosted Acrylic Diffuser, LED PC Boards

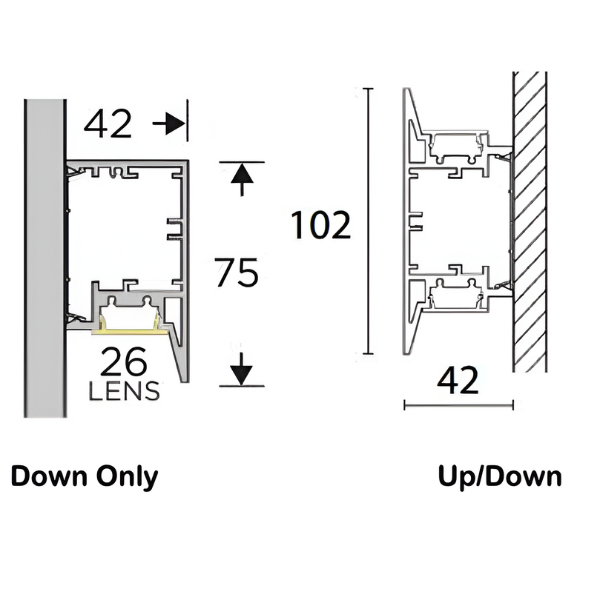

DIMENSIONS
Up/Down-Length: Custom mm; Width: 42mm; Height: 102mm

Down-Length: Custom mm; Width: 42mm; Height: 75mm



Download Data Sheet

Download IES File

SKU: AW136IW Category:

Additional information

Wattage

10W/M, 20W/M, 30W/M

CRI

>90

Temperature

2700K, 3000K, 3500K, 4000K, 5000K, 6500K

Dimming

(1-10V), DD (DALI), ND (Non-Dim)

Finish

Aluminium, Black, White

IP Rating

IP20

Length

Custom

Direction

Up & Down Only
Down Only
