AW12RD

PRODUCT NAME: Iconic 12

DESCRIPTION
3rd Generation, Robust Design, Custom Deep Baffle, Adjustable Recessed LED Downlight

MATERIAL
Powder coated Die Cast Aluminium Trim, Custom Engineered Parabolic Reflector, PC Clear Diffuser

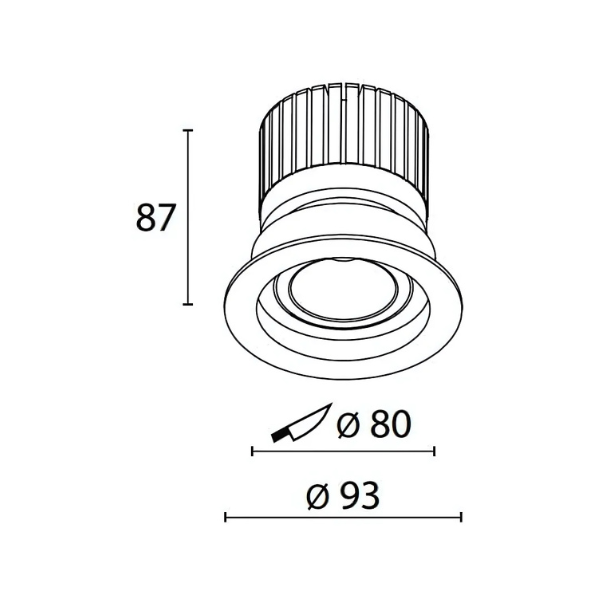

DIMENSIONS
Diameter: 93mm; Height: 87mm; Cut Out: 80mm



Download Data Sheet

Download IES File

SKU: AW12RD Category:

Additional information

Wattage

13.5W

Lumen output

1200 lms

Beam angle

50°

Temperature

3000K, 4000K

CRI

>85

Dimming

(1-10V), DD (DALI), ND (Non-Dim), PH (Phase)

Finish

Black, Silver, White

IP rating

IP20
