AW9906RD

PRODUCT NAME: SKYLIGHT R15

DESCRIPTION
Low Profile, Circular, Wide Distribution, Recessed LED Luminaire, Utilising Patented Thin Film Transistor Technology. Cyanosis Approved Option, High CRI

MATERIAL
Die-Cast Aluminium Trim and Body, Powder Coated Matt Finish, Aluminium Heat sink, Patented Thin Film Transistor, PMMA Opal Diffuser

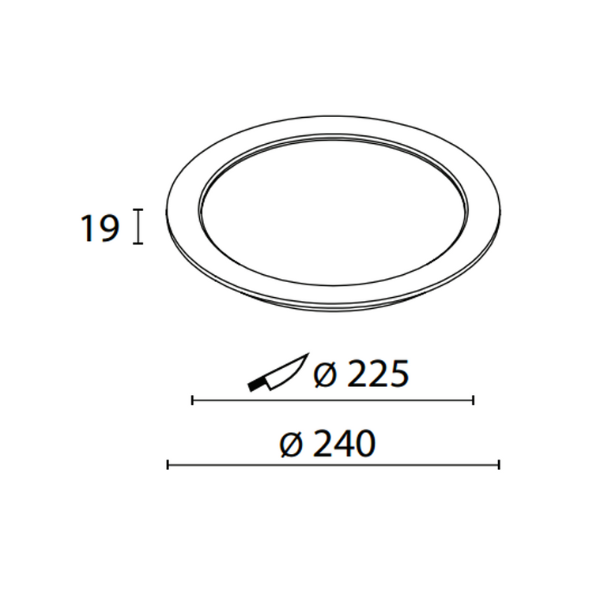

DIMENSIONS
Diameter: 240mm; Height: 19mm; Cut Out: 225mm



Download Data Sheet

Download IES File

SKU: AW9906RD Category:

Additional information

Wattage

15W

Lumen output

1460 lms

Beam angle

120°

Temperature

3000K, 4000K

CRI

>80

Dimming

(1-10V), DD (DALI), ND (Non-Dim), PH (Phase)

Finish

Black, White

IP rating

IP44
