AW384SD

PRODUCT NAME: TAJIMA SM5

DESCRIPTION

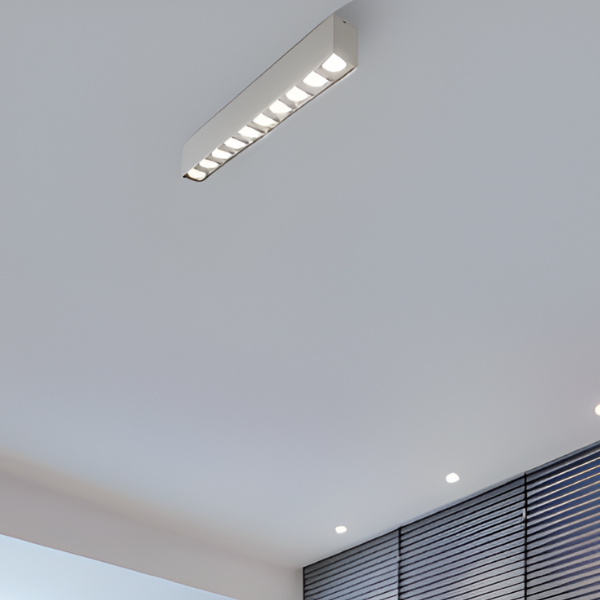

Multi-Faceted, Miniature, Linear Surface Mounted LED-Luminaire-Available with Different Colour Options

MATERIAL
Die Cast Aluminium Body and Base, Artificial Marble Trim, PMMA Baffle and Lens

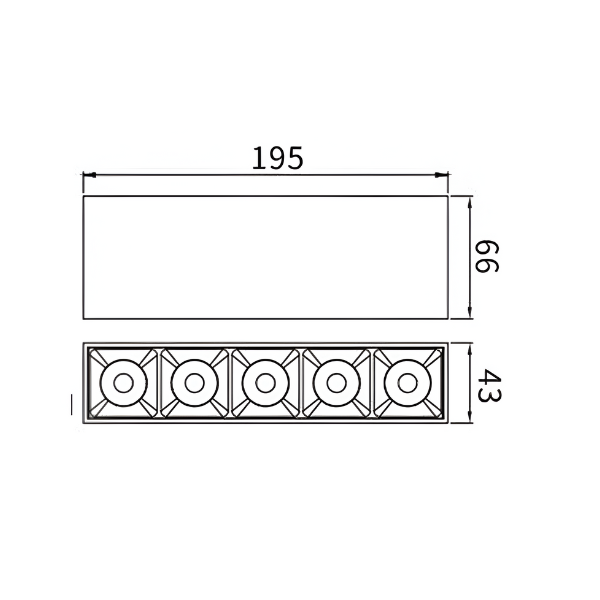

DIMENSIONS
Length: 195mm; Width: 43mm; Height: 66mm



Download Data Sheet

Download IES File

SKU: AW384SD Category:

Additional information

Wattage

10W

Beam Angle

15°, 24°, 36°

Lumen Output

890 lms

Temperature

2700K, 3000K, 3500K, 4000K

CRI

>90

Dimming

DD (DALI), ND (Non-Dim), PH (Phase)

Finish

Black, White

Baffle Options

White Baffle, Black Baffle

IP Rating

IP44

IK Rating

IK07
